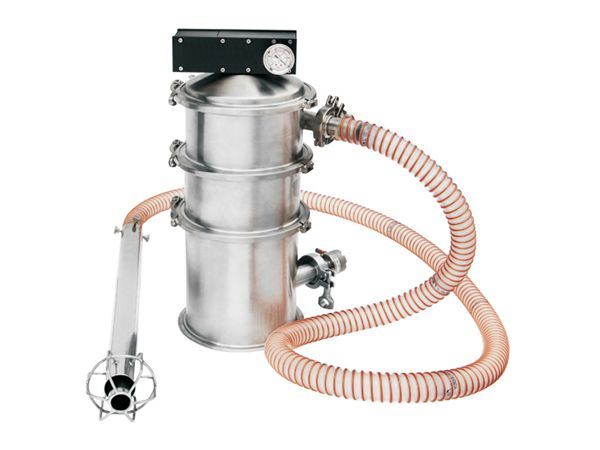

Automatic Vacuum Conveyor, QVC Series
This pneumatic vacuum conveying machine is specially designed to transport powders, tablets and other pharmaceutical materials. It utilizes compressed air to generate vacuum through vacuum generator, eliminating the need for mechanical vacuum pump. Our automatic vacuum conveyor is featured by compact size, low noise and easy operation, and also helps eliminate the static electricity that may cause materials to stick to one another, meeting the requirements of GMP standard.
Consistent materials with the same density can be guaranteed during the vacuum conveying process, making the vacuum conveyor an ideal automatic material loading solution for feeding materials to tablet press, capsule filler, dry granulator, packaging machine, vibrating sieve and other pharmaceutical equipment.
- Model:
QVC-1
- Capacity: 350Kg/h
- Air consumption: 180L/min
- Power: 5W
- Overall dimensions: Φ140x560
- Weight: 15Kg
- Model:
QVC-2
- Capacity: 700Kg/h
- Air consumption: 360L/min
- Power: 5W
- Overall dimensions: Φ213x720
- Weight: 20Kg
- Model:
QVC-3
- Capacity: 1440Kg/h
- Air consumption: 720L/min
- Power: 5W
- Overall dimensions: Φ290x850
- Weight: 28Kg
- Model:
QVC-4
- Capacity: 2880Kg/h
- Air consumption: 1440L/min
- Power: 5W
- Overall dimensions: Φ420x1150
- Weight: 40Kg
| Model | QVC-1 | QVC-2 | QVC-3 | QVC-4 |
| Capacity | 350Kg/h | 700Kg/h | 1440Kg/h | 2880Kg/h |
| Air consumption | 180L/min | 360L/min | 720L/min | 1440L/min |
| Power | 5W | 5W | 5W | 5W |
| Overall dimensions | Ø140x560 | Ø213x720 | Ø290x850 | Ø420x1150 |
| Weight | 15Kg | 20Kg | 28Kg | 40Kg |
