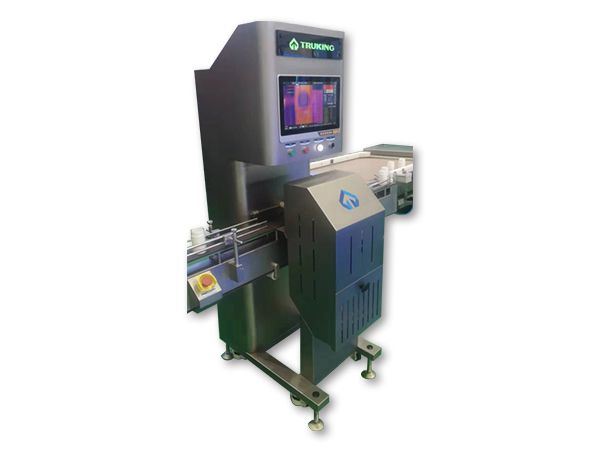

Seal Inspection Machine, CSV-200
This seal inspection machine is designed for checking of aluminum foil seals and heat seals on bottles and containers, suitable for various sizes of foils or caps.
- Designed for checking of aluminum foil seals and heat seals on bottles and containers, suitable for various sizes of foils or caps;
- Advanced infrared thermal imaging system with a frame rate of up to 100fps, independently developed image processing algorithm on thermal frame capture ensures high stability and reliability;
- Real-time display of products images, real time monitoring and data logging, allowing user to trace and analyze the faulty products;
- The system meets the FDA 21 CFR Part 11 requirements;
- Easy-to-use operator interface, simplifying the operator's work;
|Inspection speed||≤18m/min (belt conveyor, subject to availability)|
|Applicable filled products||Tablets, soft & hard capsules, liquid, powder|
|Applicable foil type||Single-layer aluminum foil, paper-backed aluminum foil|
|Applicable bottle||Bottle diameter: ≤300mm Bottle height: ≤500mm Bottle pitch: ≥12mm|
|Applicable cap||Cap diameter: 20mm-200mm Cap shape: round Cap type: CT (continuous thread) / CRC (child resistance closure) Cap color: all colors, except black|
|Installation||Placed within 0.2m-2m behind induction cap sealing machine /heat sealing machine|
Note: the installation location depends on the product.
