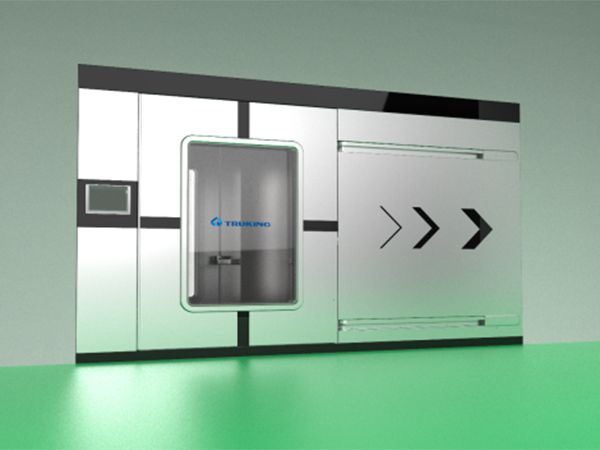

Pharmaceutical Bin Washer, QD Series
QD series pharmaceutical bin washer is particularly used for cleaning and drying of blending containers and IBCs in oral solid dosage production. This IBC washer machine can accommodate IBC bins and material containers of different capacities, providing high level of automation and high cleaning efficiency.

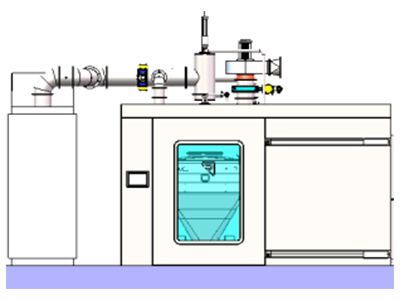

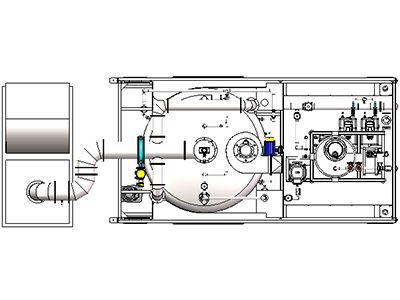

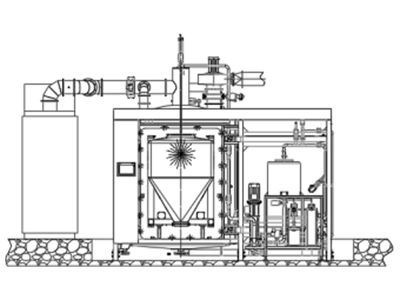

Air handling unit (AHU) Pump station
Features
- One-stop solution for washing, drying and cooling of IBC containers;
- Setting of process parameters based on process recipe formulation;
- Automatic detergent adding;
- Self-cleaning function;
- Maximum coverage of washing, rinsing, air purging and drying, without dead spots;
- Sliding door, automatic opening and closing;
- Visual inspection window is made of tempered glass, providing broad field of view inside the washing machine;
- Compliant with GMP standard;
- Optional functions of electronic signature and audit trail;
Technical Specifications
- Model:
QD800
- Max IBC volume (L): 800
- Pump power (kw): 3
- Water flow (t/h): 10
- Steam pressure (bar): 3-6
- Steam consumption (kW): 901
- Inlet air motor power (kW): 2.2
- Outlet air motor power (kW): 5.5
- Model:
QD1000
- Max IBC volume (L): 1000
- Pump power (kw): 3
- Water flow (t/h): 10
- Steam pressure (bar): 3-6
- Steam consumption (kW): 901
- Inlet air motor power (kW): 2.2
- Outlet air motor power (kW): 5.5
- Model:
QD1500
- Max IBC volume (L): 1500
- Pump power (kw): 3
- Water flow (t/h): 10
- Steam pressure (bar): 3-6
- Steam consumption (kW): 901
- Inlet air motor power (kW): 2.2
- Outlet air motor power (kW): 5.5
- Model:
QD2000
- Max IBC volume (L): 2000
- Pump power (kw): 3
- Water flow (t/h): 10
- Steam pressure (bar): 3-6
- Steam consumption (kW): 901
- Inlet air motor power (kW): 2.2
- Outlet air motor power (kW): 5.5
| Model | QD800 | QD1000 | QD1500 | QD2000 |
| Max IBC volume (L) | 800 | 1000 | 1500 | 2000 |
| Pump power (kw) | 3 | 3 | 3 | 3 |
| Water flow (t/h) | 10 | 10 | 10 | 10 |
| Steam pressure (bar) | 3-6 | 3-6 | 3-6 | 3-6 |
| Steam consumption (kW) | 901 | 901 | 901 | 901 |
| Inlet air motor power (kW) | 2.2 | 2.2 | 2.2 | 2.2 |
| Outlet air motor power (kW) | 5.5 | 5.5 | 5.5 | 5.5 |
