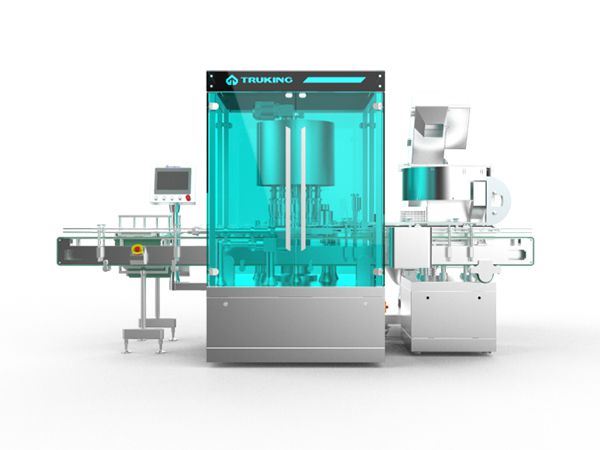

Rotary Capping Machine, SC-R250

Request a Quote

The SC-R250 rotary capping machine is designed to automatically feed, sort and apply screw caps to various containers, including round bottles, square bottles and oval bottles. It is an ideal bottle capper machine for use in pharmaceutical, supplement, candy and household chemical, food and beverage industries.

Request a Quote

• Centrifugal cap orientation, CMOS laser sensor for judging front or back of the cap, air blow-off rejection without damaging caps;
• Tool-less changeovers for timing screws, star wheels and capping heads, locating pin for precise positioning, less than 30 minutes for changeover;
• Detection of upside down bottles, protection against overload to the screw;
• Pneumatic three-jaw gripper, automatic centering without damaging caps;
• Exclusive permanent magnet clutch torque limiter, torque adjustment and precise control of cap torque;
• Motorized height adjustment to accommodate various bottle sizes;
• Detection and rejection of upside down caps, caps with no aluminum foil, loosen caps and deformed caps;
• Transparent tempered glass door, stainless steel and aluminum construction, ensuring operation safety and easy cleaning;
• Human-machine operation system with 10-inch screen;
