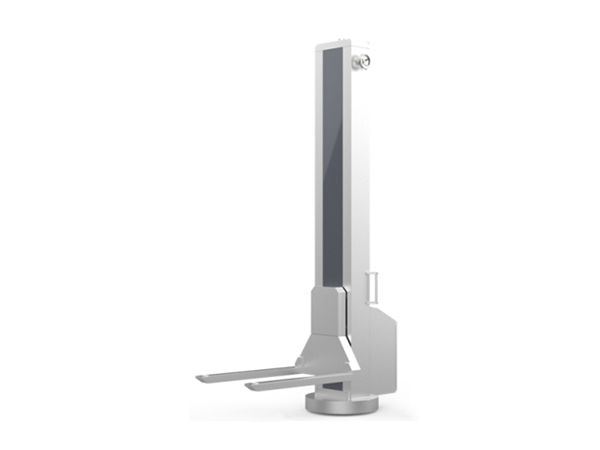

IBC Post Hoist / Column Lift for Bins, TX Series
The single column lift is designed for handling various material containers, with a wide option of lifting capacities. This bin lifter can be fitted with processing equipment such as granulator, mixer, material handling device, molding machine and packaging machine in pharmaceutical, chemical, food industries.
Features
- Motor and ball screw lifting mechanism, providing stable lifting and lowering operation, low noise level, without causing fluid leakage and environmental contamination;
- Lifting speed is adjustable by variable frequency drive;
- Self-locking and overload protection, ensuring high safety;
- Rotation design can accommodate different loading positions;
- Flexible setting of unloading position, upper and lower limits, ensuring operation safety;
- Compliant with GMP requirements in pharmaceutical industry;

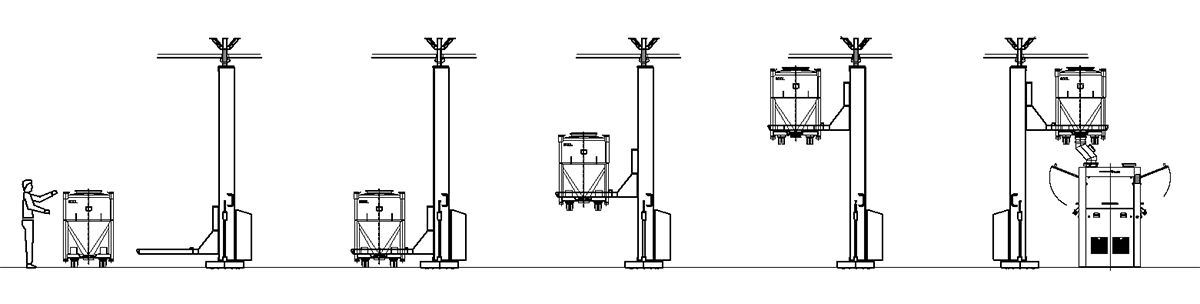

Work Flow
- Loading of material container
- Lower limit
- Lifting
- Upper limit
- Rotation and unloading
Technical Specifications
- Model:
TX150
- IBC volume (L): 150
- Net load (kg): 75
- Total load (kg): 220
- Lift power (kW): 1.5
- Weight (kg): 500
- Model:
TX200
- IBC volume (L): 200
- Net load (kg): 100
- Total load (kg): 350
- Lift power (kW): 2.2
- Weight (kg): 550
- Model:
TX400
- IBC volume (L): 400
- Net load (kg): 200
- Total load (kg): 500
- Lift power (kW): 2.2
- Weight (kg): 750
- Model:
TX600
- IBC volume (L): 600
- Net load (kg): 300
- Total load (kg): 800
- Lift power (kW): 3
- Weight (kg): 800
- Model:
TX800
- IBC volume (L): 800
- Net load (kg): 400
- Total load (kg): 800
- Lift power (kW): 3
- Weight (kg): 900
- Model:
TX1000
- IBC volume (L): 1000
- Net load (kg): 500
- Total load (kg): 1500
- Lift power (kW): 4
- Weight (kg): 1000
- Model:
TX1200
- IBC volume (L): 1200
- Net load (kg): 600
- Total load (kg): 1500
- Lift power (kW): 4
- Weight (kg): 1100
- Model:
TX1500
- IBC volume (L): 1500
- Net load (kg): 750
- Total load (kg): 1500
- Lift power (kW): 4
- Weight (kg): 1200
- Model:
TX2000
- IBC volume (L): 2000
- Net load (kg): 1000
- Total load (kg): 1800
- Lift power (kW): 4
- Weight (kg): 1300
| Model | TX150 | TX200 | TX400 | TX600 | TX800 | TX1000 | TX1200 | TX1500 | TX2000 |
| IBC volume (L) | 150 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Net load (kg) | 75 | 100 | 200 | 300 | 400 | 500 | 600 | 750 | 1000 |
| Total load (kg) | 220 | 350 | 500 | 800 | 800 | 1500 | 1500 | 1500 | 1800 |
| Lift power (kW) | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 | 4 |
| Weight (kg) | 500 | 550 | 750 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
