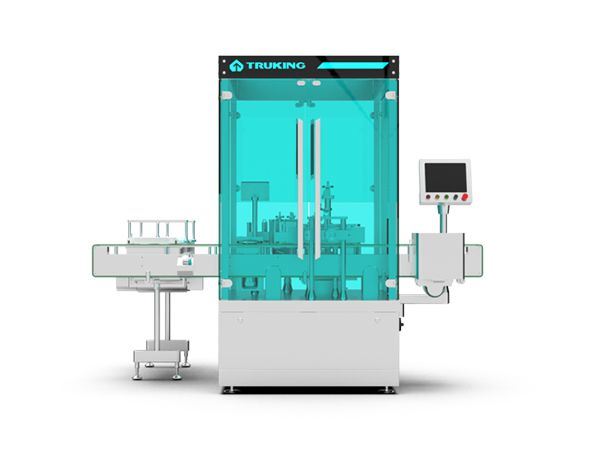

Wrap-around Labeling Machine, LM-W01
LM-W01 wrap-around labeling machine is an automatic vertical bottle labeling machine for applying adhesive labels on round bottles or containers. It is a great choice for businesses in food, pharmaceutical, cosmetic and other light industries that often use round packaging containers.
Features
- Configurations of photo-electric label sensor, PLC control, touch panel, belt conveyor, indexing wheel and stepless speed control, providing accurate and secure labelling;
- Functions of no object no labeling, automatic alignment, automatic detection;
- Compact structure, superior look, easy operation and maintenance;
- Meeting GMP requirements;
- Servo motor drive for label dispenser;
- Thermal transfer ribbon printer is optional for continuous and accurate printing of production date, batch code and best before date;
Technical Specifications
| Overall dimensions | 1100mm(L)×1650mm(W)×2050mm(H) (main machine) | |
| Weight | 300kg | |
| Main machine | Max. output | 250 bottles/min |
| Bottle size | Bottle diameter: Ø20-Ø100mm Bottle height: 40-220mm | |
| Detection and rejection | Detection of printing and barcode UV detection and rejection for bottles with no label (optional) | |
| Damage rate | ＜0.001% | |
| Pass rate | ≥99.99% | |
| Noise level | ≤50db | |
| Label dispenser | Dispensing speed | 3-60m/min |
| Dispensing accuracy | ±1mm | |
| Label width | 10mm-100mm | |
| Electric and air requirements | Power supply | AC220V±10%(50Hz)-1P+N+PE |
| Installation power | 2.0kW | |
| Compressed air | Quick change adapter: Ø10mm;10L/min,(0.5MPa-0.8MPa) | |
