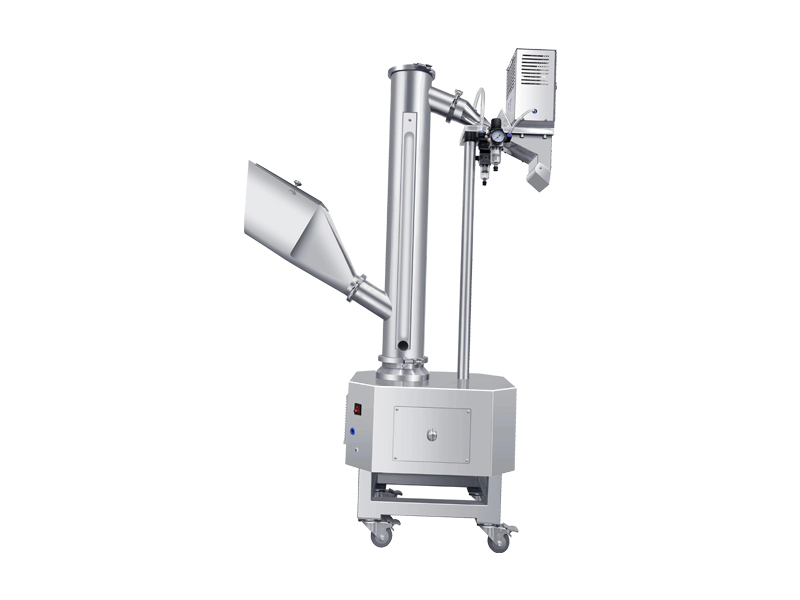

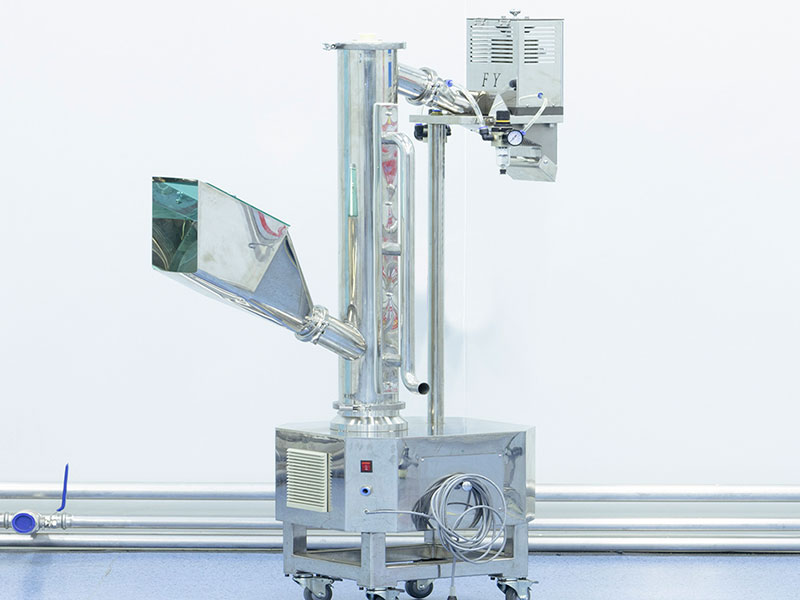

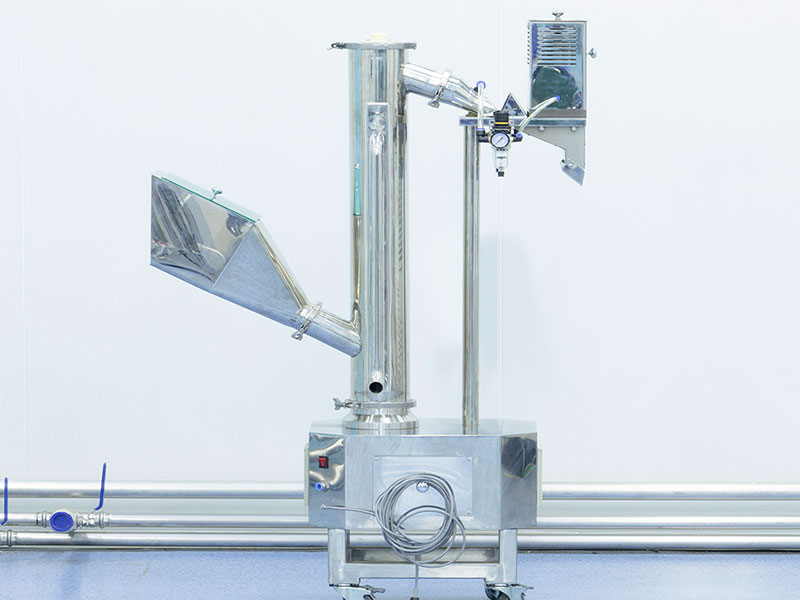

Vertical Capsule Sorting Polisher, JFP Series
JFP series vertical capsule polisher integrates three functions of capsule polishing, elevating and sorting. It is compatible with any type of capsule filling machine, and can be incorporated into existing production line such as metal detector therefore performing continuous operations of polishing, upward conveying, sorting and detecting.
Features
- Able to polish up to 8,000 capsules per minute;
- Compatible with any type of capsule filling machine;
- Automatic sorting of loose powder, empty, separated or broken capsules;
- Easy assembly and disassembly thanks to the quick connector;
- Brush is detachable, the entire machine can be thoroughly cleaned without blind spot, GMP standard compliant;
Technical Specifications
| Capacity | 8000 pcs/min |
| Power supply | 220V 50HZ 1A |
| Power | 200W |
| Compressed air pressure | < 0.3 m Pa |
| Compressed air flow | > 270L/min |
| Vacuum flow | > 1000L/min |
| Vacuum degree | > 0.13mbar |
| Weight | 138KG |
| Overall dimensions | 682×600×1646 (mm) |
