Empty Capsule Sorter Elevator, JQS Series

Empty Capsule Sorter Elevator, JQS Series
Request a Quote

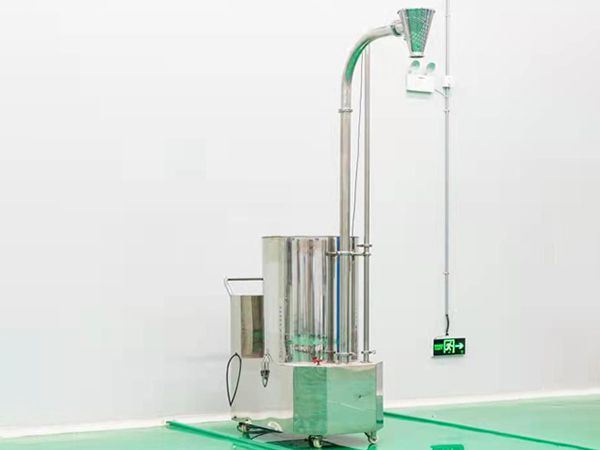

Empty capsule sorter elevator, as the name implies, is used to sort and elevate empty capsules into the hopper of the capsule filling machine. It adopts air amplifier as its air source and two conveying processes, so that issues such as capsule separation or locking caused during conveying can be efficiently avoided. Thanks to the use of quick couplings, the conveying piping system can be easily disassembled for daily maintenance and cleaning. The entire empty capsule feeding machine is made of stainless steel, respecting both GMP standard and our own quality demands of high efficiency and environmental protection.

Request a Quote
Samples
  • Empty Capsule Sorter Elevator, JQS Series
  • Empty Capsule Sorter Elevator, JQS Series
  • Empty Capsule Sorter Elevator, JQS Series
Technical Specifications
Capacity 8000pcs/min
Power supply 220V 50HZ 1A
Power 60W
Compressed air pressure < 0.5mpa
Compressed air flow > 180L/min
Weight 55kg
Overall dimensions 682x600x1646 (mm)
