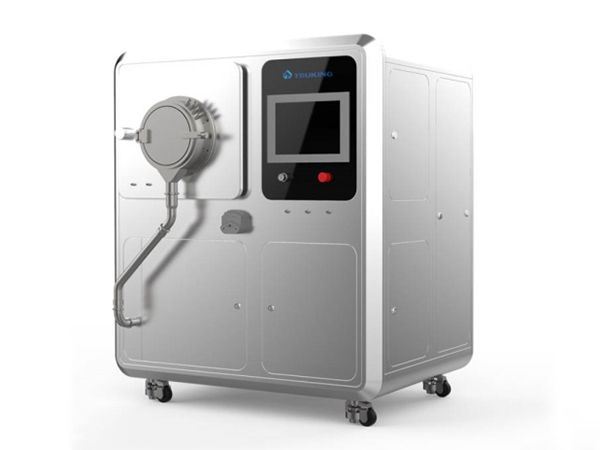

Lab Tablet Coater, GBM Series
GBM series laboratory tablet coater is a versatile table coating machine to create film coating on tablets or pellets, suitable for applications of R&D, clinical trials and small batch outputs in the pharmaceutical and food industry.
Features
- Exchangeable drums enable the machine suitable for a wide range of batch production capacities;
- The loading capacity of single drum ranges from 40% to 100%;
- Especially designed spray gun enhances the coating quality;
- Spray gun position and spraying angle are adjustable to accommodate various process requirements;
- Rotation for coating, counter rotation for automatic discharging;
- Integrated structure design, the machine contains inlet air flow and exhaust air flow units;
- Portable design, ideal to run laboratory and R&D applications;
Technical Specifications
- Model:
GBS5
- Production capacity (L/batch): 0.3-5
- Drum speed (r/min): 5-44
- Drum motor power (kW): 0.37
- Inlet air motor power (kW): 0.37
- Inlet air volume (m3/h): 300
- Outlet air motor power (kW): 1.1
- Outlet air volume (m3/h): 1000
- Model:
GBS10
- Production capacity (L/batch): 1-10
- Drum speed (r/min): 3-31
- Drum motor power (kW): 0.75
- Inlet air motor power (kW): 0.75
- Inlet air volume (m3/h): 500
- Outlet air motor power (kW): 1.1
- Outlet air volume (m3/h): 1000
- Model:
GBS20
- Production capacity (L/batch): 2-20
- Drum speed (r/min): 3-28
- Drum motor power (kW): 1.1
- Inlet air motor power (kW): 1.1
- Inlet air volume (m3/h): 1000
- Outlet air motor power (kW): 2.2
- Outlet air volume (m3/h): 2000
| Model | GBS5 | GBS10 | GBS20 |
| Production capacity (L/batch) | 0.3-5 | 1-10 | 2-20 |
| Drum speed (r/min) | 5-44 | 3-31 | 3-28 |
| Drum motor power (kW) | 0.37 | 0.75 | 1.1 |
| Inlet air motor power (kW) | 0.37 | 0.75 | 1.1 |
| Inlet air volume (m3/h) | 300 | 500 | 1000 |
| Outlet air motor power (kW) | 1.1 | 1.1 | 2.2 |
| Outlet air volume (m3/h) | 1000 | 1000 | 2000 |
