High-Shear Mixer Granulator, TM Series

Request a Quote

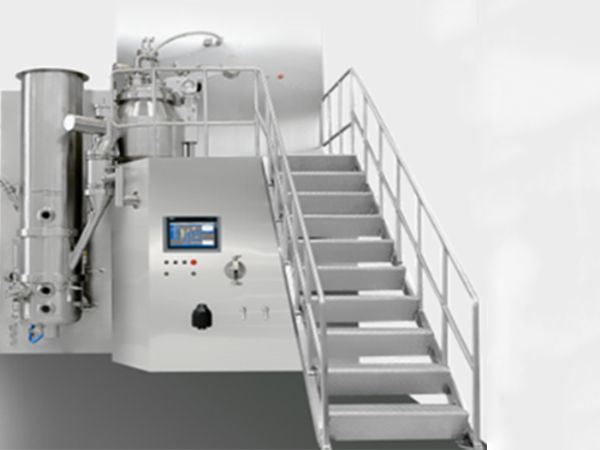

TM series high-shear mixer granulator is a wet granulation machine used for wet mixing, homogenizing, granulating and drying of powder to obtain high-quality granules. It can be widely used in the granulation process of pharmaceutical, food, chemical, health products, plastic and other industries requiring powder mixing operation, satisfying granule production needs of different solid dosage forms such as tablets and capsules.

Request a Quote

Samples

Features

Vacuum loading, elevator adding, gravity discharging;
Binder adding is available in several methods, such as pressure vessel or peristaltic pump;
Options of spray gun to meet different process needs, typically atomizing spray gun and non-atomizing spray gun;

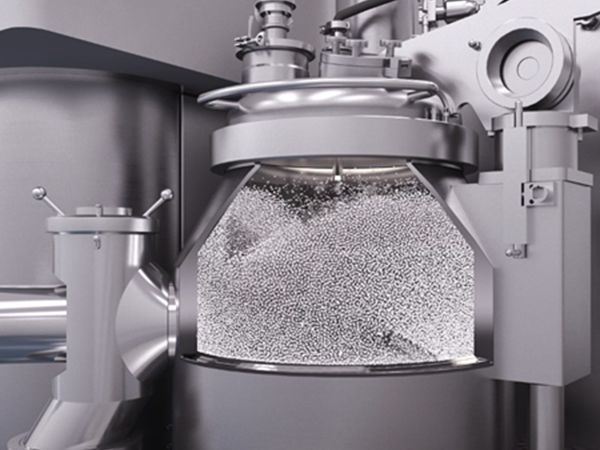

Unique structure design of mixing impeller and chopper blade enables better granulation effect;
Reliable sealing mechanism avoids powder leakage during the granulation process;
Stepless variable speed control of mixing and granulating to accommodate different process needs;
WIP (wash-in-place) system;
Mixing impeller is liftable for easy operation, maintenance and cleaning;
Can be integrated with conical mill;
Excellent process control system, with functions of management of formulation and process parameters, data logging, audit trail, electronic signature, etc.;
Suitable for highly active substances, containment level of OEB4;
Through-The-Wall (TTW) design, high rate of space utilization;
Optional function of protection against 10-bar explosion pressure

Technical Specifications

Model Selection
Compare

Model:
TM50
Effective volume (L): 50
Working volume (L): 20-40
Capacity (kg/batch) (bulk density 0.5g/cm³): 10-20
Impeller speed (r/min): 10-280
Impeller power (kW): 5.5
Chopper speed (r/min): 1000-3000
Chopper power (kW): 3
Rotor speed (r/min): 150-1500
Rotor power (kW): 2.2
Weight (t): 2.2

Model:
TM75
Effective volume (L): 75
Working volume (L): 40-80
Capacity (kg/batch) (bulk density 0.5g/cm³): 20-40
Impeller speed (r/min): 10-230
Impeller power (kW): 11
Chopper speed (r/min): 1000-3000
Chopper power (kW): 4
Rotor speed (r/min): 150-1500
Rotor power (kW): 2.2
Weight (t): 2.6

Model:
TM100
Effective volume (L): 100
Working volume (L): 60-120
Capacity (kg/batch) (bulk density 0.5g/cm³): 30-60
Impeller speed (r/min): 10-200
Impeller power (kW): 15
Chopper speed (r/min): 1000-3000
Chopper power (kW): 5.5
Rotor speed (r/min): 150-1500
Rotor power (kW): 4
Weight (t): 2.8

Model:
TM200
Effective volume (L): 200
Working volume (L): 120-240
Capacity (kg/batch) (bulk density 0.5g/cm³): 60-120
Impeller speed (r/min): 10-170
Impeller power (kW): 22
Chopper speed (r/min): 1000-3000
Chopper power (kW): 7.5
Rotor speed (r/min): 150-1500
Rotor power (kW): 4
Weight (t): 3.1

Model:
TM400
Effective volume (L): 400
Working volume (L): 200-400
Capacity (kg/batch) (bulk density 0.5g/cm³): 100-200
Impeller speed (r/min): 10-150
Impeller power (kW): 37
Chopper speed (r/min): 1000-3000
Chopper power (kW): 11
Rotor speed (r/min): 150-1500
Rotor power (kW): 5.5
Weight (t): 3.5

Model:
TM600
Effective volume (L): 600
Working volume (L): 320-640
Capacity (kg/batch) (bulk density 0.5g/cm³): 160-320
Impeller speed (r/min): 10-130
Impeller power (kW): 55
Chopper speed (r/min): 1000-3000
Chopper power (kW): 15
Rotor speed (r/min): 150-1500
Rotor power (kW): 5.5
Weight (t): 4.1

Model:
TM800
Effective volume (L): 800
Working volume (L): 400-800
Capacity (kg/batch) (bulk density 0.5g/cm³): 200-400
Impeller speed (r/min): 10-120
Impeller power (kW): 55
Chopper speed (r/min): 1000-3000
Chopper power (kW): 15
Rotor speed (r/min): 150-1500
Rotor power (kW): 5.5
Weight (t): 4.5

Model:
TM1000
Effective volume (L): 1200
Working volume (L): 480-960
Capacity (kg/batch) (bulk density 0.5g/cm³): 240-480
Impeller speed (r/min): 10-110
Impeller power (kW): 75
Chopper speed (r/min): 1000-3000
Chopper power (kW): 15
Rotor speed (r/min): 150-1500
Rotor power (kW): 5.5
Weight (t): 5.1

Model	TM50	TM75	TM100	TM200	TM400	TM600	TM800	TM1000
Effective volume (L)	50	75	100	200	400	600	800	1200
Working volume (L)	20-40	40-80	60-120	120-240	200-400	320-640	400-800	480-960
Capacity (kg/batch) (bulk density 0.5g/cm³)	10-20	20-40	30-60	60-120	100-200	160-320	200-400	240-480
Impeller speed (r/min)	10-280	10-230	10-200	10-170	10-150	10-130	10-120	10-110
Impeller power (kW)	5.5	11	15	22	37	55	55	75
Chopper speed (r/min)	1000-3000
Chopper power (kW)	3	4	5.5	7.5	11	15	15	15
Rotor speed (r/min)	150-1500
Rotor power (kW)	2.2	2.2	4	4	5.5	5.5	5.5	5.5
Weight (t)	2.2	2.6	2.8	3.1	3.5	4.1	4.5	5.1
