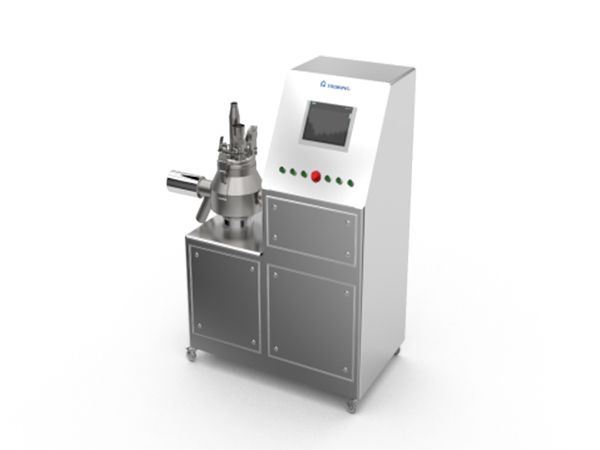

Laboratory High-Shear Mixer Granulator, TM10
Our laboratory high shear mixer granulator is designed for accurate mixing and homogeneous wet granulation to powder, can be widely used for new product development and small batch production in the pharmaceutical and food industry.
Features
- Interchangeable bowl design for different batch sizes, easy to change;
- Satisfying the needs of R&D, pilot and small scale production;
- Stepless variable speed control of mixing and granulating to accommodate different process needs;
- Combination of mechanical seal and gas seal, ensuring reliable sealing performance;
- Excellent process control system, with functions of management of formulation and process parameters, data logging, audit trail, electronic signature, etc.;
- Can be integrated with isolator, providing OEB4/5 level containment solution;
Technical Specifications
| Model | TM10 | ||||||
| Volume (L) | 2 | 3 | 4 | 5 | 8 | 10 | 15 |
| Working volume (L) | 0.8-1.6 | 1.2-2.4 | 1.6-3.2 | 2-4 | 3.2-6.4 | 4-8 | 6-12 |
| Capacity (kg/batch) (bulk density 0.5g/cm³) | 0.4-0.8 | 1.6-1.2 | 0.8-1.6 | 1-2 | 1.6-3.2 | 2-4 | 3-6 |
| Impeller speed (r/min) | 100-900 | ||||||
| Impeller power (kW) | 1.1 | ||||||
| Chopper speed (r/min) | 300-3000 | ||||||
| Chopper power (kW) | 0.75 | ||||||
| Weight (kg) | 400 | ||||||
