Fluid Bed Dryer, TV Series
The TV series fluid bed dryer carries out mixing, drying and top spray granulating as an integrated system that performs one-step granulation in a closed container, meeting GMP requirements. The fluidized bed granulator is widely used in the pharmaceutical, food and chemical industries.
Samples
Features
- Wet granulation process offers high-efficiency granulation solution;
- Top spray gun from world's renowned brands;
- Professional structure design of air distribution plate leads to uniform air flow distribution, high processing efficiency and reliable product quality;

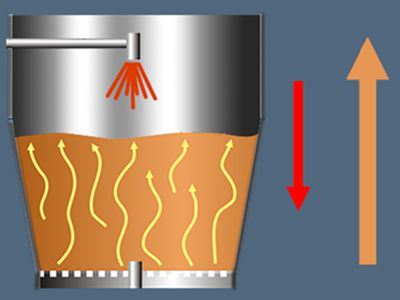

- Fluidized bed top spray granulation process is performed through the combination of air distribution plate and top spray gun, the liquid binder acts as a bridge to form granules which are featured by better bulk density and flow properties as well as good size distribution;

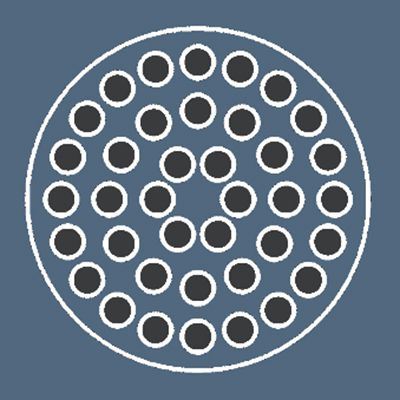

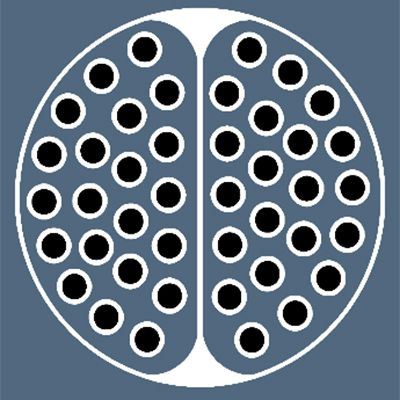

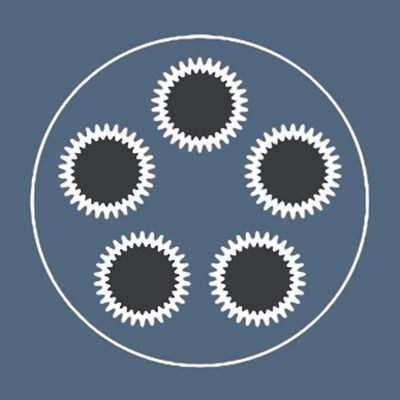

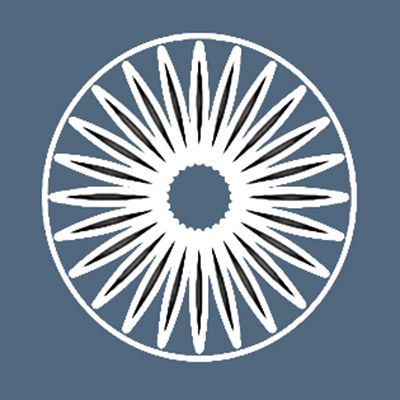

- Reliable filtration system offers easy assembling and cleaning, multiple filtration methods are available to meet specific processing needs;
- PLC control, frequency converter, and industrial computer operation;
- Excellent process control system, with functions of management of formulation and process parameters, data logging, audit trail, electronic signature, etc.;
- The exhausted air flows through medium-efficiency and high-efficiency dust removal systems, enabling it can be directly discharged, meeting the requirements of environmental protection;
- WIP (wash-in-place) system;
- Optional 2-bar explosion pressure vent and 10-bar explosion-proof;
- Suitable for highly active substances, containment level of OEB4;

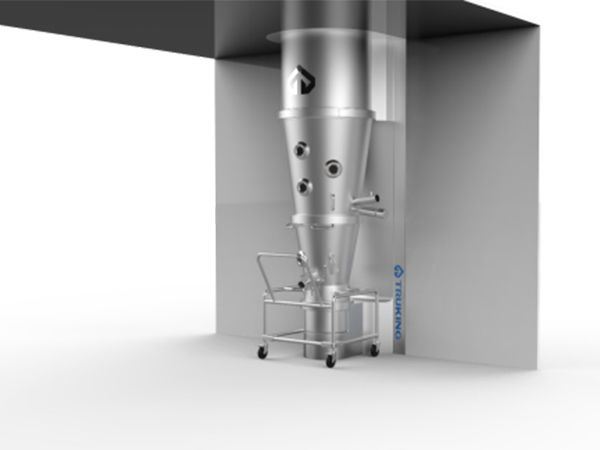

- Through-the-wall installation, high rate of space utilization for granulation;
Technical Specifications
- Model:
TV25
- Effective volume (L): 60
- Capacity (kg/batch) (bulk density 0.5g/cm³): 7-20
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 11
- Weight (t): 2.2
- Model:
TVP75
- Effective volume (L): 75
- Capacity (kg/batch) (bulk density 0.5g/cm³): 10-30
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 15
- Weight (t): 2.5
- Model:
TVP100
- Effective volume (L): 100
- Capacity (kg/batch) (bulk density 0.5g/cm³): 15-60
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 18.5
- Weight (t): 2.9
- Model:
TVP200
- Effective volume (L): 200
- Capacity (kg/batch) (bulk density 0.5g/cm³): 40-120
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 22
- Weight (t): 3.5
- Model:
TVP400
- Effective volume (L): 400
- Capacity (kg/batch) (bulk density 0.5g/cm³): 60-200
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 30
- Weight (t): 4
- Model:
TVP600
- Effective volume (L): 600
- Capacity (kg/batch) (bulk density 0.5g/cm³): 100-300
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 45
- Weight (t): 4.6
- Model:
TV800
- Effective volume (L): 800
- Capacity (kg/batch) (bulk density 0.5g/cm³): 120-400
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: f9
- High efficiency dust collector for exhausted air: H13
- Fan power: 45
- Weight (t): 5.5
- Model:
TV1000
- Effective volume (L): 1000
- Capacity (kg/batch) (bulk density 0.5g/cm³): 150-500
- Inlet air temperature control: Room temperature to 100℃
- Inlet air filtration: M6+F9+H13
- Medium efficiency dust collector for exhausted air: F9
- High efficiency dust collector for exhausted air: H13
- Fan power: 55
- Weight (t): 6
| Model | TV25 | TVP75 | TVP100 | TVP200 | TVP400 | TVP600 | TV800 | TV1000 |
| Effective volume (L) | 60 | 75 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Capacity (kg/batch) (bulk density 0.5g/cm³) | 7-20 | 10-30 | 15-60 | 40-120 | 60-200 | 100-300 | 120-400 | 150-500 |
| Inlet air temperature control | Room temperature to 100℃ | |||||||
| Inlet air filtration | M6+F9+H13 | |||||||
| Medium efficiency dust collector for exhausted air | F9 | F9 | F9 | F9 | F9 | F9 | f9 | F9 |
| High efficiency dust collector for exhausted air | H13 | H13 | H13 | H13 | H13 | H13 | H13 | H13 |
| Fan power | 11 | 15 | 18.5 | 22 | 30 | 45 | 45 | 55 |
| Weight (t) | 2.2 | 2.5 | 2.9 | 3.5 | 4 | 4.6 | 5.5 | 6 |
