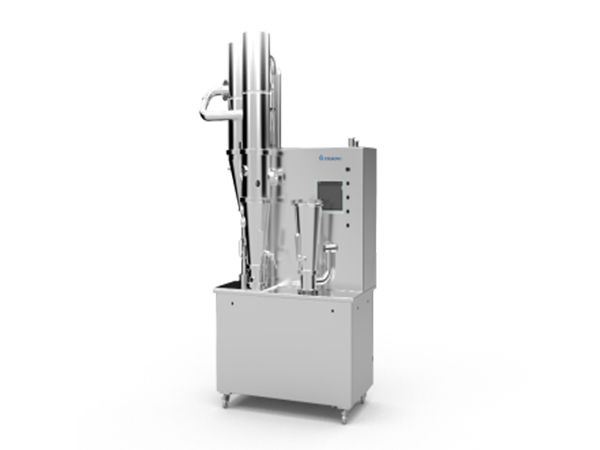

Laboratory Fluid Bed Dryer, TVP Series
TVP series laboratory fluid bed dryer is specially designed for R&D work and small batch production in pharmaceutical and food industries, providing effective drying, coating and granulation for lab works.
Features
- Drying, granulation and coating processes are carried out in one single machine;
- Integrated structure, compact size, portable design, easy to operate;
- Exchangeable bowls can accommodate different batch sizes;
- Flexibly suitable for R&D, clinical batches and production;
- Top spray for granulation, Wurster bottom spray for coating;
- Excellent process control system, with functions of management of formulation and process parameters, data logging, audit trail, electronic signature, etc.;
- Can be integrated with isolator, providing OEB4/5 level containment solution;
Technical Specifications
- Model:
TVP5
- Granulator effective volume (L): 5
- Granulator capacity (kg/batch) (bulk density 0.5g/cm³): 0.6-1.5
- Coating granulator effective volume (L): 2
- Coat Capacity, kg/batch (bulk density 0.7g/cm³): 0.5-1.2
- Inlet air temperature control: Room temperature to 100℃
- Fan power: 2.2
- Weight (kg): 750
- Model:
TVP10
- Granulator effective volume (L): 10
- Granulator capacity (kg/batch) (bulk density 0.5g/cm³): 1-3
- Coating granulator effective volume (L): 6
- Coat Capacity, kg/batch (bulk density 0.7g/cm³): 1-2
- Inlet air temperature control: Room temperature to 101℃
- Fan power: 4
- Weight (kg): 830
- Model:
TVP15
- Granulator effective volume (L): 15
- Granulator capacity (kg/batch) (bulk density 0.5g/cm³): 2.5-5
- Coating granulator effective volume (L): 10
- Coat Capacity, kg/batch (bulk density 0.7g/cm³): 2-5
- Inlet air temperature control: Room temperature to 102℃
- Fan power: 5.5
- Weight (kg): 900
| Model | TVP5 | TVP10 | TVP15 |
| Granulator effective volume (L) | 5 | 10 | 15 |
| Granulator capacity (kg/batch) (bulk density 0.5g/cm³) | 0.6-1.5 | 1-3 | 2.5-5 |
| Coating granulator effective volume (L) | 2 | 6 | 10 |
| Coat Capacity, kg/batch (bulk density 0.7g/cm³) | 0.5-1.2 | 1-2 | 2-5 |
| Inlet air temperature control | Room temperature to 100℃ | ||
| Fan power | 2.2 | 4 | 5.5 |
| Weight (kg) | 750 | 830 | 900 |
