Conical Mill with Vacuum Conveying, TQZ Series

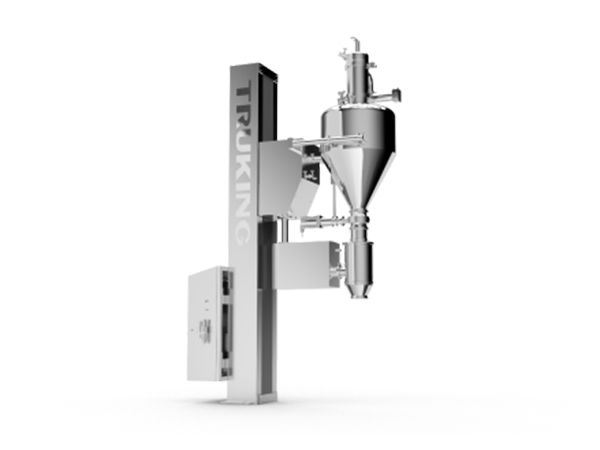

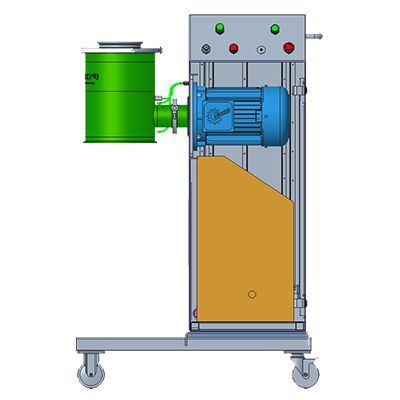

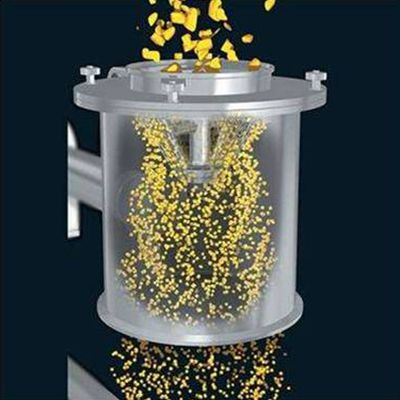

TQZ series conical mill is configured with vacuum conveying system that transfers dried particles from the fluid-bed dryer bowl to the buffer tank. By opening the valve of the buffer tank, the conical mill performs uniform size reduction of particles via rotor and screen, providing ideal and reliable size reduction solution for industry sectors such as pharmaceutical, food, chemical, and others.
Samples
Features
- The rotor is available in several shapes, providing processing options to adapt to material characteristics;
- Screens with different shapes and sizes allows user to well control of uniform particle size;
- Stepless speed control with frequency conversion, accommodating different process needs;
- Explosion-resistant design is complaint with EN ISO 80079-36 and EN ISO 80079-37 standards, the conical mill is ATEX certified;
- Suitable for highly active substances, containment level of OEB4;
- Through-the-wall installation, high rate of space utilization;
- Temperature control module can be optionally configured, suitable for handling heat-sensitive materials;
Technical Specifications
- Model:
TQZ50
- Buffer tank volume (L): 50
- Lift power (kW): 1.5
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 2.2
- Mill capacity (kg/h): 200
- Weight (kg): 550
- Model:
TQZ100
- Buffer tank volume (L): 100
- Lift power (kW): 1.5
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 2.2
- Mill capacity (kg/h): 200
- Weight (kg): 630
- Model:
TQZ150
- Buffer tank volume (L): 150
- Lift power (kW): 2.2
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 4
- Mill capacity (kg/h): 500
- Weight (kg): 700
- Model:
TQZ300
- Buffer tank volume (L): 300
- Lift power (kW): 2.2
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 4
- Mill capacity (kg/h): 500
- Weight (kg): 750
- Model:
TQZ500
- Buffer tank volume (L): 500
- Lift power (kW): 3
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 5.5
- Mill capacity (kg/h): 1000
- Weight (kg): 900
- Model:
TQZ800
- Buffer tank volume (L): 800
- Lift power (kW): 3
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 5.5
- Mill capacity (kg/h): 1000
- Weight (kg): 1000
- Model:
TQZ1200
- Buffer tank volume (L): 1200
- Lift power (kW): 3
- Rotor speed (r/min): 150-1500
- Rotor power (kW): 5.5
- Mill capacity (kg/h): 1000
- Weight (kg): 1150
| Type | TQZ50 | TQZ100 | TQZ150 | TQZ300 | TQZ500 | TQZ800 | TQZ1200 |
| Buffer tank volume (L) | 50 | 100 | 150 | 300 | 500 | 800 | 1200 |
| Lift power (kW) | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 3 | 3 |
| Rotor speed (r/min) | 150-1500 | ||||||
| Rotor power (kW) | 2.2 | 2.2 | 4 | 4 | 5.5 | 5.5 | 5.5 |
| Mill capacity (kg/h) | 200 | 200 | 500 | 500 | 1000 | 1000 | 1000 |
| Weight (kg) | 550 | 630 | 700 | 750 | 900 | 1000 | 1150 |
