Cone Mill, ZLZ Series

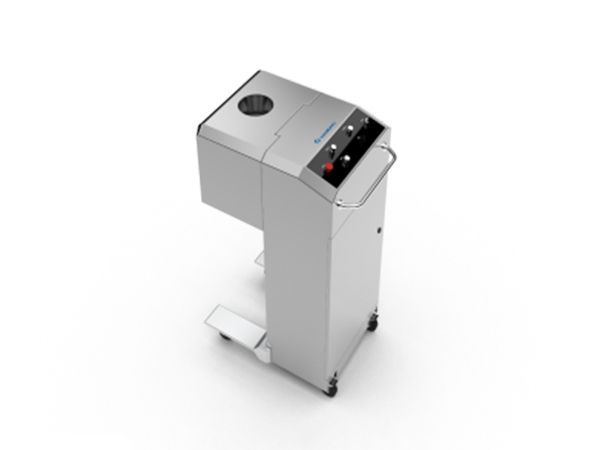

The ZLZ series cone mill is a portable system used for crushing, screening and reducing the large solids into small uniform particles. It is mainly used in manufacturing solid dosage forms in the pharmaceutical industry.
Features
- Modular design and quick assembly, can be flexibly applied in processing applications requiring easy setup and quick changeover;
- The rotor is available in several shapes, providing processing options to adapt to either dry or wet material characteristics;
- Screens with different shapes and sizes allows user to well control of uniform particle size;
- Stepless speed control with frequency conversion, accommodating different process needs;
- Explosion-resistant design is complaint with EN ISO 80079-36 and EN ISO 80079-37 standards, the conical mill is ATEX certified;
- Temperature control module can be optionally configured, suitable for handling heat-sensitive materials;
Technical Specifications
- Model:
ZLZ200
- Production capacity (kg/h): 200
- Rotor speed (r/min): 150-1500
- Rotor motor power (kW): 2.2
- Screen mesh (mesh): 5-30
- Weight (kg): 300
- Model:
ZLZ250
- Production capacity (kg/h): 500
- Rotor speed (r/min): 150-1500
- Rotor motor power (kW): 4
- Screen mesh (mesh): 5-30
- Weight (kg): 400
- Model:
ZLZ300
- Production capacity (kg/h): 1000
- Rotor speed (r/min): 150-1500
- Rotor motor power (kW): 5.5
- Screen mesh (mesh): 5-30
- Weight (kg): 550
| Model | ZLZ200 | ZLZ250 | ZLZ300 |
| Production capacity (kg/h) | 200 | 500 | 1000 |
| Rotor speed (r/min) | 150-1500 | 150-1500 | 150-1500 |
| Rotor motor power (kW) | 2.2 | 4 | 5.5 |
| Screen mesh (mesh) | 5-30 | 5-30 | 5-30 |
| Weight (kg) | 300 | 400 | 550 |
