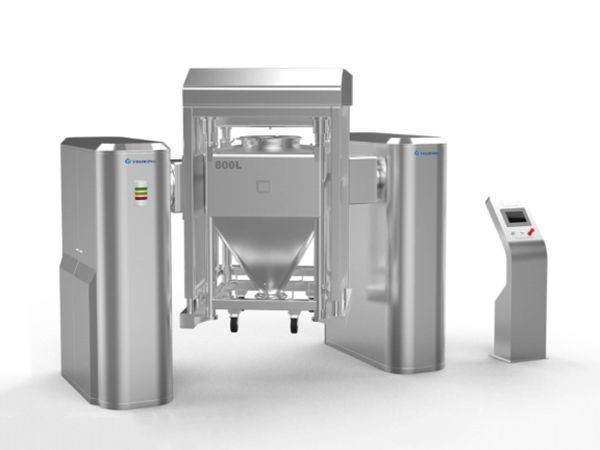

Automatic Bin Blender, DHZ Series
Automatic bin blender is an industrial powder mixing machine for pre-blending and final mixing of a wide range of products in the pharmaceutical, food and chemical industries, providing high powder mixing uniformity.
Features
- IBC bin coupled with specially designed transmission system, providing better flow and effective control of materials layers thus resulting in superior mixing uniformity and efficiency;
- Modular design permits easy changing and cleaning of bins, preventing cross-contamination of materials and dust pollution;
- PLC control;
- Process parameters such as blending time and rotation speed can be set according to actual production needs;
- Production batch management, conformity with GMP requirements in pharmaceutical industry;
- Formulation management, easy setting of formula parameters;
- Real time and historical data and production batch information can be conveniently viewed and printed as PDF files;
- Three levels of authority management, i.e. operator, technician and administrator;
- Optional functions of electronic signature and audit trail;

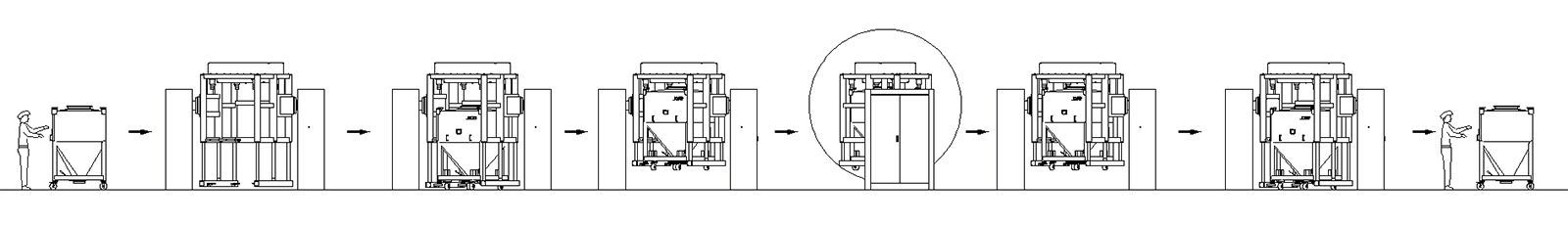

Work Flow
Technical Specifications
- Model:
DHZ400
- Max. IBC volume (L): 400
- Net load (kg): 200
- Mixing speed (rpm): 3-20
- Loading coefficient: 0.5-0.8
- Lift power (kW): 1.5
- Mixing power (kW): 4
- Weight (kg): 3000
- Model:
DHZ600
- Max. IBC volume (L): 600
- Net load (kg): 300
- Mixing speed (rpm): 3-20
- Loading coefficient: 0.5-0.8
- Lift power (kW): 1.5
- Mixing power (kW): 5.5
- Weight (kg): 3100
- Model:
DHZ800
- Max. IBC volume (L): 800
- Net load (kg): 400
- Mixing speed (rpm): 3-20
- Loading coefficient: 0.5-0.8
- Lift power (kW): 1.5
- Mixing power (kW): 5.5
- Weight (kg): 3200
- Model:
DHZ1000
- Max. IBC volume (L): 1000
- Net load (kg): 500
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Lift power (kW): 3
- Mixing power (kW): 5.5
- Weight (kg): 3300
- Model:
DHZ1200
- Max. IBC volume (L): 1200
- Net load (kg): 600
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Lift power (kW): 3
- Mixing power (kW): 7.5
- Weight (kg): 3360
- Model:
DHZ1500
- Max. IBC volume (L): 1500
- Net load (kg): 750
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Lift power (kW): 3
- Mixing power (kW): 7.5
- Weight (kg): 3400
- Model:
DHZ2000
- Max. IBC volume (L): 2000
- Net load (kg): 1000
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Lift power (kW): 4
- Mixing power (kW): 7.5
- Weight (kg): 4000
| Model | DHZ400 | DHZ600 | DHZ800 | DHZ1000 | DHZ1200 | DHZ1500 | DHZ2000 |
| Max. IBC volume (L) | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| Net load (kg) | 200 | 300 | 400 | 500 | 600 | 750 | 1000 |
| Mixing speed (rpm) | 3-20 | 3-20 | 3-20 | 3-15 | 3-15 | 3-15 | 3-15 |
| Loading coefficient | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Lift power (kW) | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 4 |
| Mixing power (kW) | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 |
| Weight (kg) | 3000 | 3100 | 3200 | 3300 | 3360 | 3400 | 4000 |
Note: The design can be customized according to user needs.
