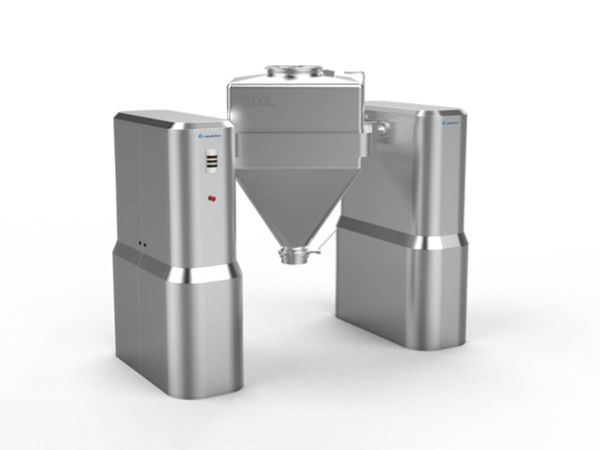

Fixed Bin Blender, DH Series
DH series fixed bin blender is mainly used for pre-blending and final mixing of powder and granules in the pharmaceutical, food and chemical industries, providing high mixing uniformity.
Features
- IBC bin coupled with specially designed transmission system, providing better flow and effective control of materials layers thus resulting in superior mixing uniformity and efficiency;
- Large mixing batch size, stable operation;
- PLC control;
- Process parameters such as blending time and rotation speed can be set according to actual production needs;
- Production batch management, conformity with GMP requirements in pharmaceutical industry;
- Formulation management, easy setting of formula parameters;
- Real time and historical data and production batch information can be conveniently viewed and printed as PDF files;
- Three levels of authority management, i.e. operator, technician and administrator;
- Optional functions of electronic signature and audit trail;
Technical Specifications
- Model:
DH1000
- IBC volume (L): 1000
- Net load (kg): 500
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 4
- Weight (kg): 1500
- Model:
DH1500
- IBC volume (L): 1500
- Net load (kg): 750
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 5.5
- Weight (kg): 1800
- Model:
DH2000
- IBC volume (L): 2000
- Net load (kg): 1000
- Mixing speed (rpm): 3-15
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 5.5
- Weight (kg): 2200
- Model:
DH3000
- IBC volume (L): 3000
- Net load (kg): 1500
- Mixing speed (rpm): 2-10
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 7.5
- Weight (kg): 3000
- Model:
DH4000
- IBC volume (L): 4000
- Net load (kg): 2000
- Mixing speed (rpm): 2-10
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 11
- Weight (kg): 3500
- Model:
DH5000
- IBC volume (L): 5000
- Net load (kg): 2500
- Mixing speed (rpm): 3-8
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 11
- Weight (kg): 4000
- Model:
DH6000
- IBC volume (L): 6000
- Net load (kg): 3000
- Mixing speed (rpm): 3-8
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 11
- Weight (kg): 5200
- Model:
DH8000
- IBC volume (L): 8000
- Net load (kg): 4000
- Mixing speed (rpm): 1-6
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 15
- Weight (kg): 6300
- Model:
DH10000
- IBC volume (L): 10000
- Net load (kg): 5000
- Mixing speed (rpm): 1-6
- Loading coefficient: 0.5-0.8
- Mixing power (kW): 15
- Weight (kg): 7200
| Model | DH1000 | DH1500 | DH2000 | DH3000 | DH4000 | DH5000 | DH6000 | DH8000 | DH10000 |
| IBC volume (L) | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Net load (kg) | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Mixing speed (rpm) | 3-15 | 3-15 | 3-15 | 2-10 | 2-10 | 3-8 | 3-8 | 1-6 | 1-6 |
| Loading coefficient | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
| Mixing power (kW) | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 | 11 | 15 | 15 |
| Weight (kg) | 1500 | 1800 | 2200 | 3000 | 3500 | 4000 | 5200 | 6300 | 7200 |
Note: The design can be customized according to user needs.
